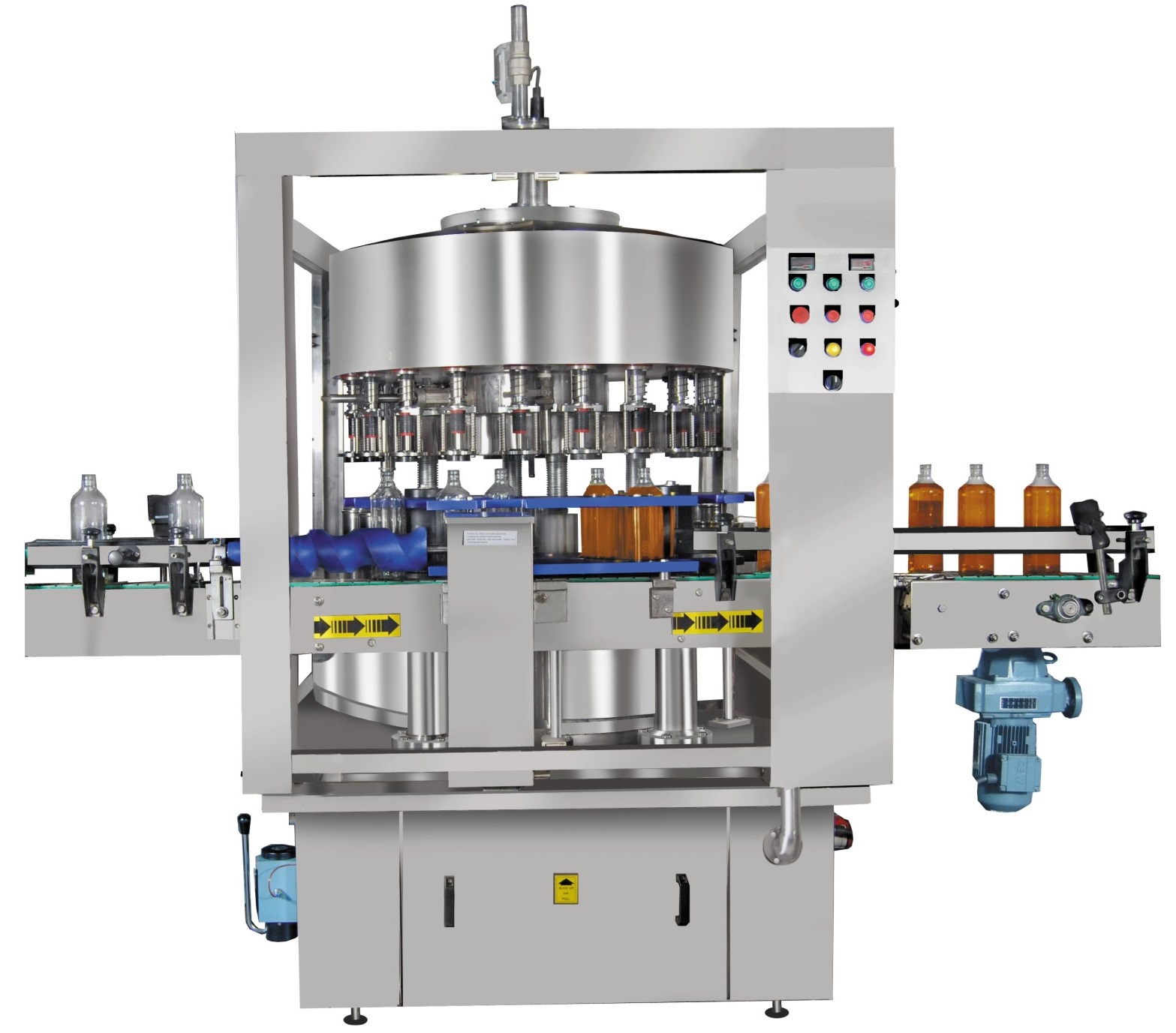

Automatic Gravity Filling Machine


We are counted among the prominent Manufacturers, Suppliers and Exporters of Fully Automatic Gravity Filling Machines from Delhi. Filling Machines offered by us are ideal for filling non-carbonated and non-viscous liquid in pet bottles e.g. mineral water, juice, milk, liquor, vinegar etc. One can obtain the Machines at nominal rates from us.

Product Details :
  • It is a Rotary Liquid Filing Machine where in the bottles are filled by gravity flow through the specially designed nozzles, which are mounted at the bottom of the tank.
  • Since filling nozzles have direct contact with the product tank, heaving no interconnecting PVC tubing which ensures no contamination.
  • These are also Level Filers like Vacuum Filler and maintain same level while filling specific container sizes.
  • These machines are ideal for filling non-carbonated and non-viscous liquid in pet bottles e.g. Mineral Water, Juice, Milk, Liquor, Vinegar etc.
  • Gravity filler can be opted with provision of partial vacuum for application in glass bottles.
Technical Specifications
 Model  Dimensions(in mm)  Power Requirement  Speed on 180 ml.
   Length  Breadth  Main M/C
 12 Head  1980  1880  2.5 H.P.  40 BPM
 16 Head  1980  1880  2.5 H.P.  60 BPM
 20 Head  1980  1880  2.5 H.P.  100 BPM
 30 Head  2795  2285  4.0 H.P.  120 BPM
 40 Head  3300  2695  8.5 H.P.  200 BPM
